High Density · Pure LiFePO₄ · Online Double Conversion
XHJ-LFP-HD Series
LiFePO₄ Online UPS
Industrial & telecom grade online double-conversion UPS optimized for LiFePO₄ (LFP) battery systems. 0 ms transfer time, pure sine wave output, high power factor, and lower total cost of ownership vs. lead-acid.
0 ms Transfer Time
Pure Sine Wave
PF ≥ 0.99
High Density Design
Fast Charging
Tip: replace the product image file below with your real front-view render (same filename).

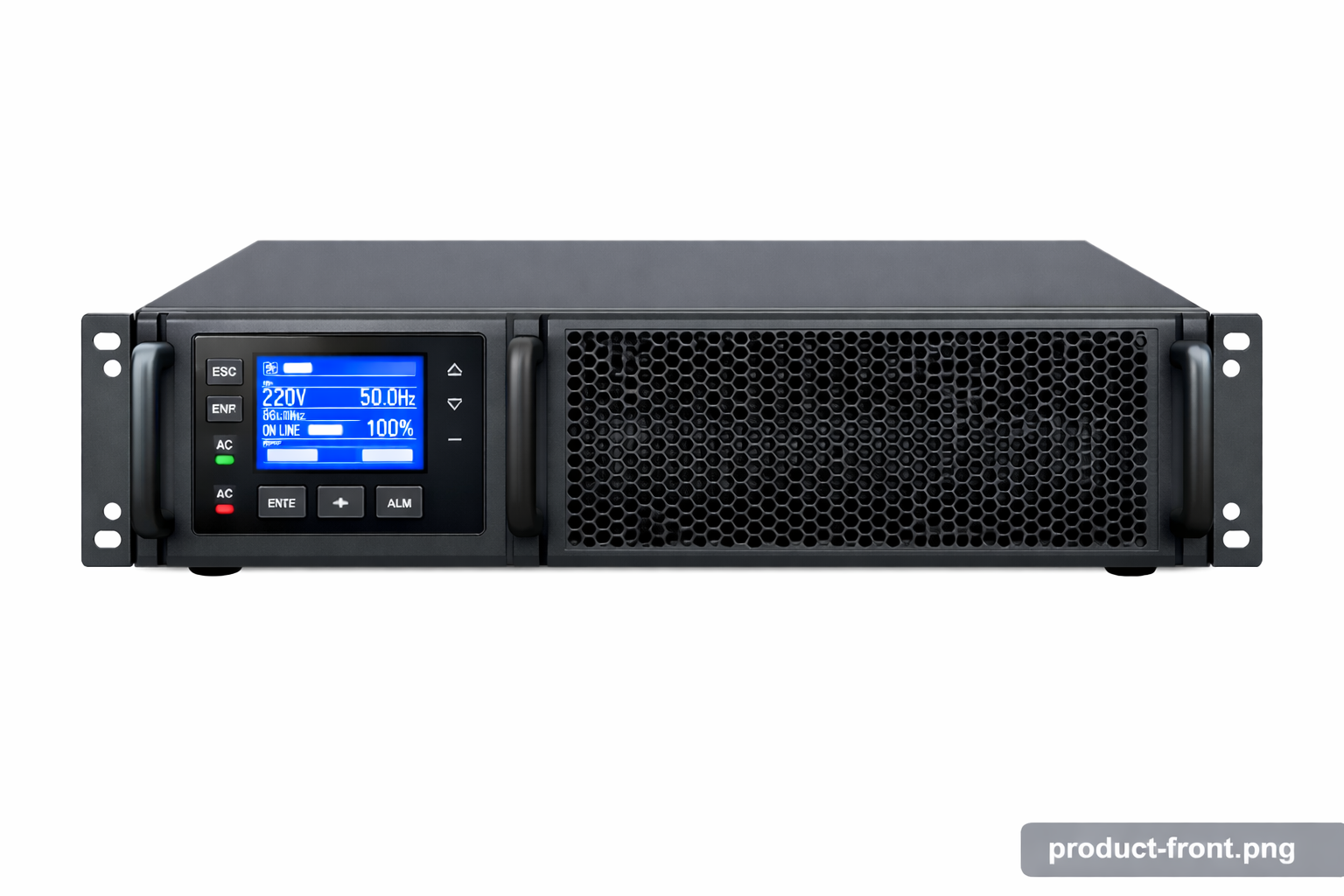

Product Front View (XHJ-LFP-HD-xxxx)
Why LiFePO₄
Higher safety, longer cycle life, and better energy density for modern backup power.
Long service life
Lower replacement frequency and lower TCO.
Safer chemistry
Improved thermal stability vs. many alternatives.
Online Double Conversion
Clean output power for sensitive loads and unstable grids.
0 ms transfer
No interruption when switching AC ↔ battery.
Pure sine wave
Stable power for IT / network / security equipment.
High Density Design
Optimized for LFP battery systems and compact deployment.
Industrial & telecom grade
Designed for critical backup applications.
Fast charging
Charging current adjustable via LCD.
Key Features
High density for LiFePO₄
Optimized structure for LFP battery systems.
Wide input voltage range
Designed for unstable grid regions.
Parallel operation supported
Scalable systems for higher capacity.
High power factor (≥ 0.99)
Improved efficiency and performance.
ECO mode efficiency
Up to 96% (ECO mode) for energy saving.
Pure sine wave output
For sensitive loads and clean power.
Available Models
| Model | Rated Power | Positioning |
|---|---|---|
| XHJ-LFP-HD-2000 | 2000 W | IT / Security / Office backup |
| XHJ-LFP-HD-3000 | 3000 W | Telecom / Network & Data |
| XHJ-LFP-HD-6000 | 5400 W | Industrial control / Larger loads |
Need other power ranges? Contact us for customization.
Application Scenarios

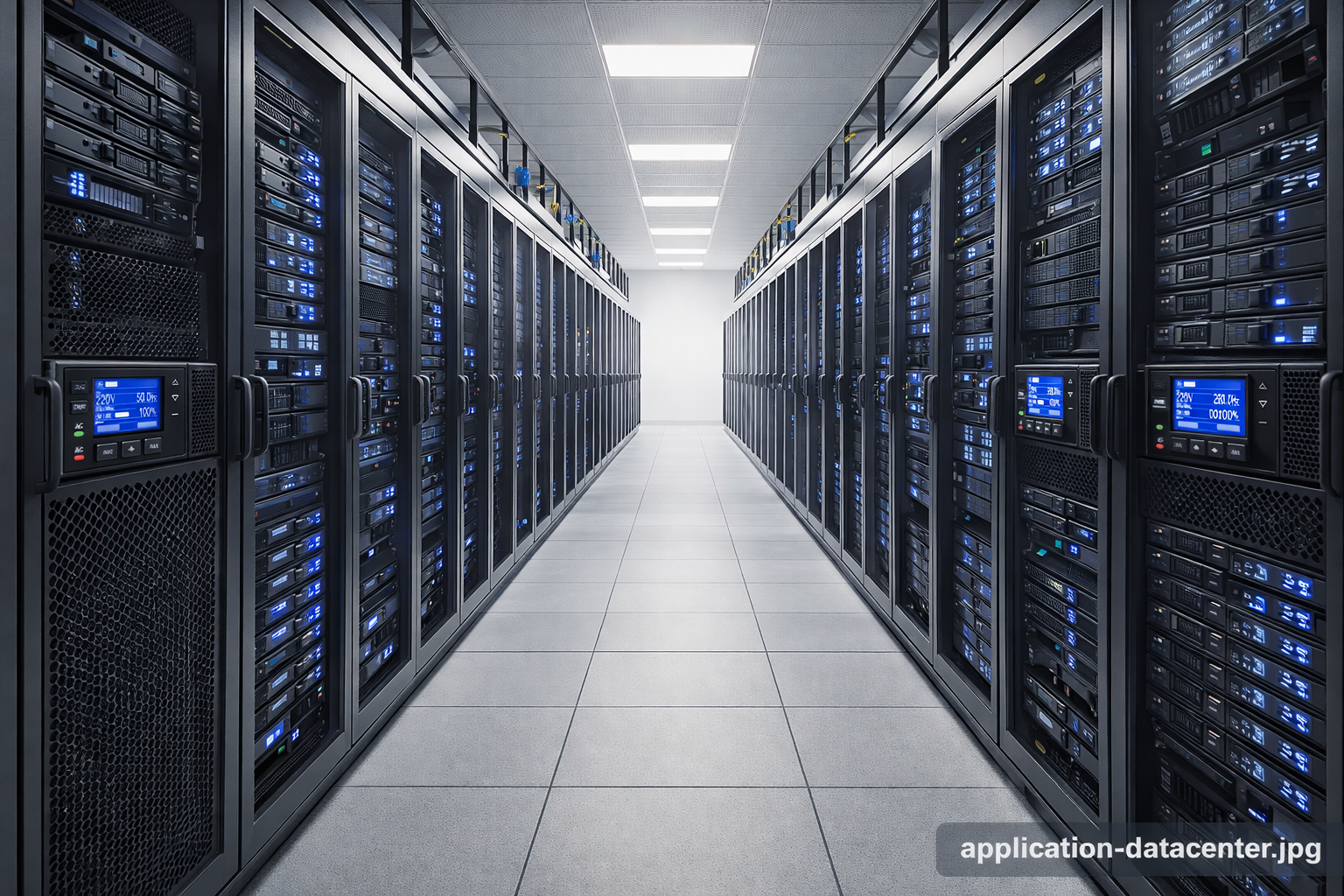

🖥 Data Center / Server Room
Reliable backup for servers, switches, routers, and critical data equipment.
📡 Telecom Base Station
Stable power for telecom cabinets and remote deployments in unstable grids.

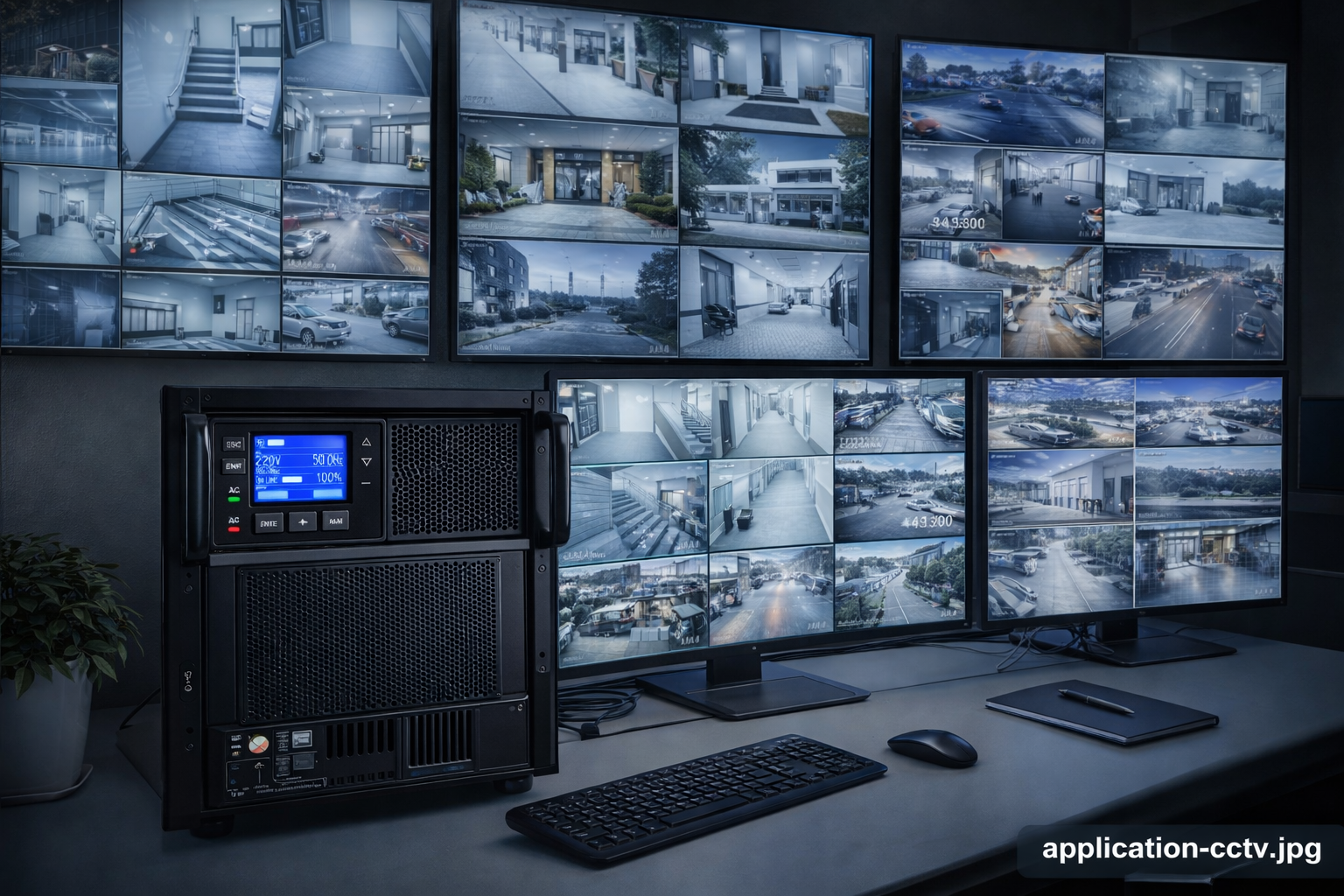

🎥 CCTV / Security System
Prevent downtime for security cameras, NVRs, and access control systems.
Core Specifications (Typical)
| Item | Specification |
|---|---|
| Topology | Online Double Conversion |
| Waveform | Pure Sine Wave |
| Transfer Time | 0 ms (AC ↔ Battery) |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Frequency Range | 40–70 Hz |
| Power Factor | ≥ 0.99 |
| Efficiency | Up to 90% (AC), ≥ 96% (ECO) |
| Battery Type | LiFePO₄ (LFP Lithium) |
| DC Voltage Range | 40–60 VDC |
| Charging | Fast charging; current adjustable via LCD |
You can replace this table with your full datasheet later.
Contact
What to send us
1) Load power (W) & backup time
2) Input voltage range / grid condition
3) Quantity & destination country
